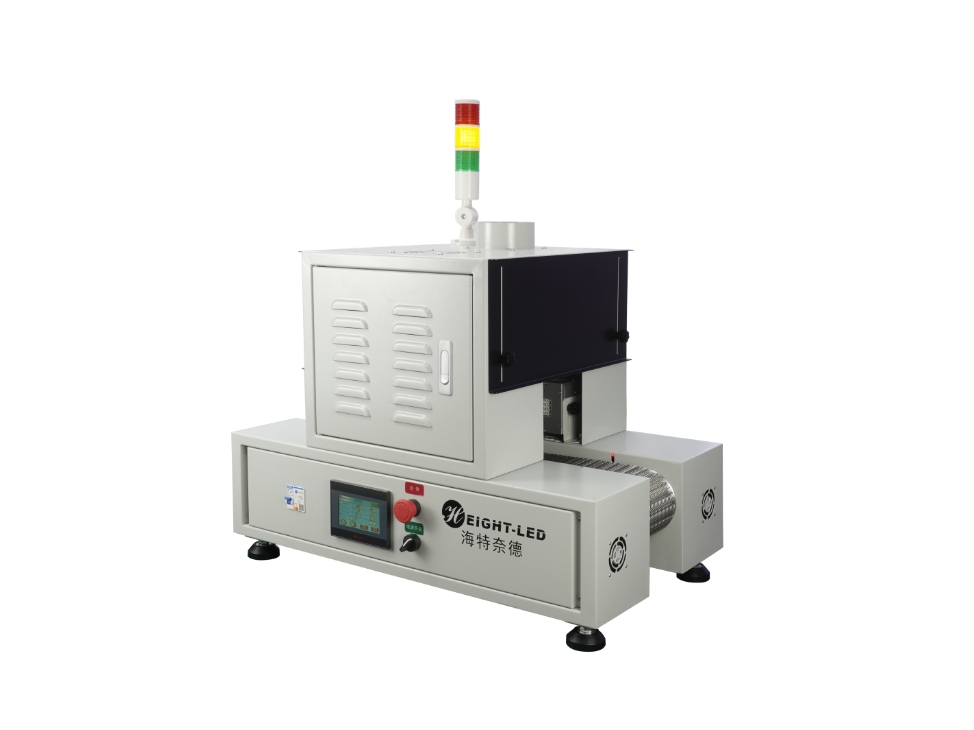

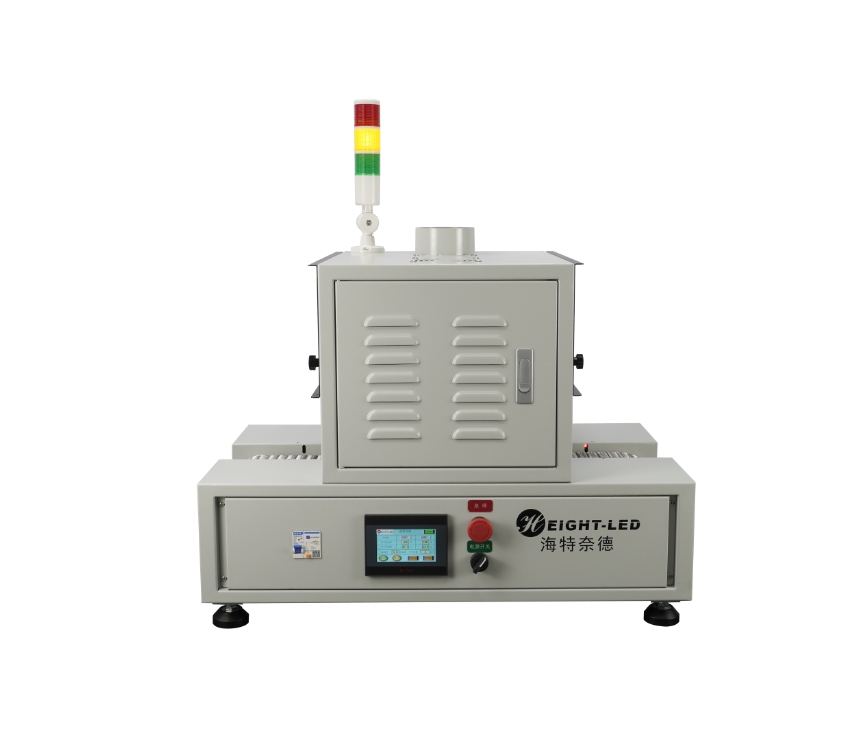

Model HTCD-II-FS100100X12030X2-NL UV LED curing machine is a three-sided light UV curing equipment, the light position were the top 100mm * 100mm, the side of the 120mm * 30mm * 2. The wavelength of the device is 365nm.
I. Equipment features
1. The device supports real-time monitoring of UVLED temperature, UVLED failure alarm function and energy-saving protection function.
2. equipment to provide continuous mode and back-end mode optional, continuous mode, click the start button, UV machine conveyor belt and UVLED has been working, click the stop button to stop the UV machine work; back-end mode, click the start button, the UV machine conveyor belt and the UVLED began to work, when the back-end sensor sensor to sense the product, the conveyor belt and the UVLED to stop working when the product is taken away to continue to enter the next cycle. The product is taken away and continues to enter the next cycle.
3. The equipment has digital dimming, delayed shutdown fan heat fan, history of irradiation time query and other functions.
Second, the light source characteristics
1. Energy efficient
UVLED output band concentration, high photoelectric conversion rate, energy saving, fast curing speed, high productivity.
2. Wide range of application
UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.
3. Long life
UVLEDs have a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.
4. Green
Comply with RoHS, no mercury.
