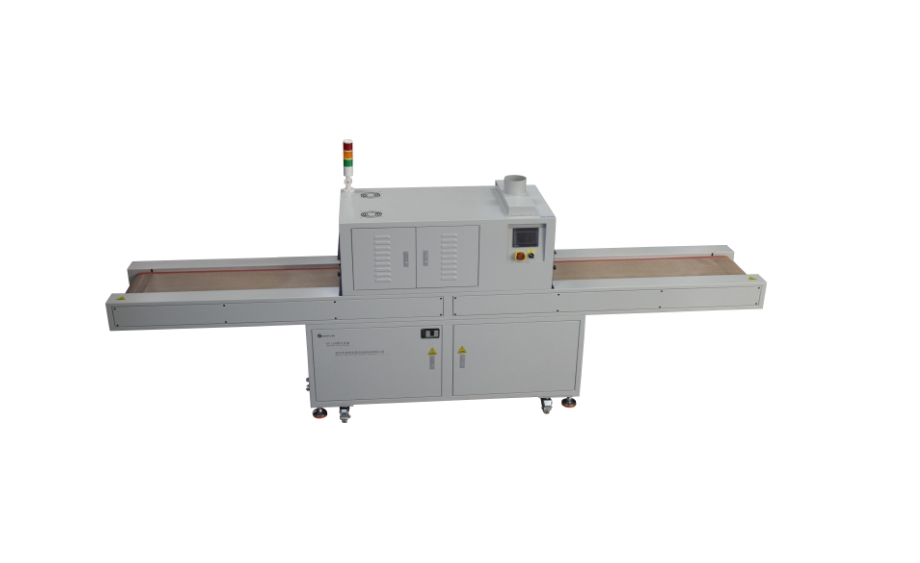

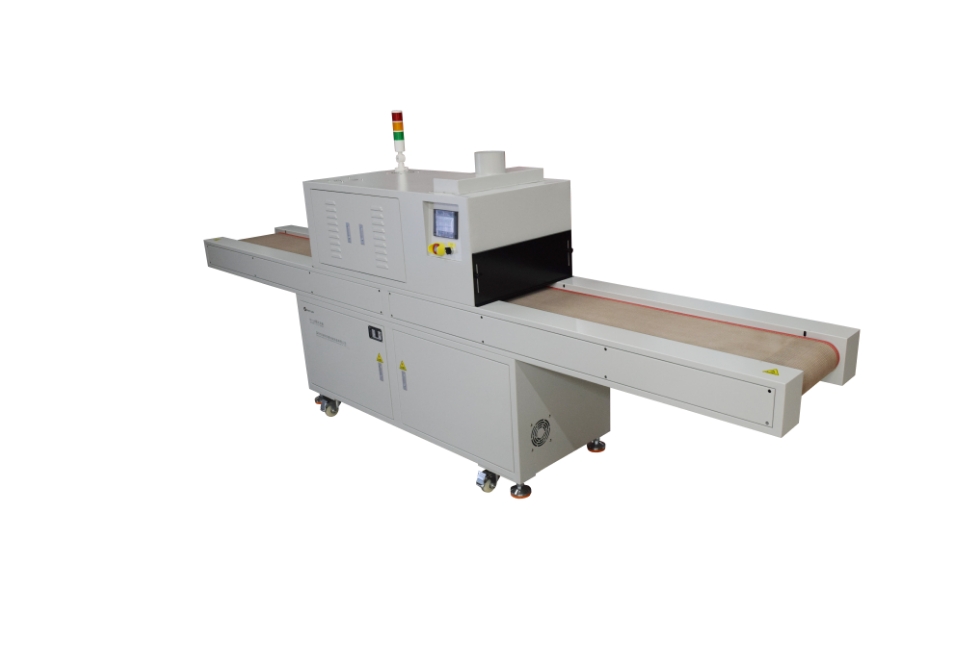

I. Equipment features

1. The equipment supports real-time monitoring of UVLED temperature, UVLED high temperature alarm function and energy saving protection function.

2. equipment to provide regional mode and continuous mode optional, regional mode, click the start button, the conveyor belt began to run, the product flows backward, when the front end of the region to sense the product, UVLED open, when the back end of the region to detect the product outflow, close the UVLED, the product continues to the back when the rear sensor sensor senses the product, the conveyor belt stops working, take away the product automatically into the next cycle of bad; stand-alone mode, click the start button, the UV machine conveyor belt and UVLED has been working, click the stop button, click the alarm function and energy-saving. In stand-alone mode, click the start button, UV machine conveyor belt and UVLED has been working, click the stop button, the conveyor belt and UVLED stop working.

3. The equipment has the functions of digital dimming, delayed shutdown of cooling fan, and historical irradiation time query.

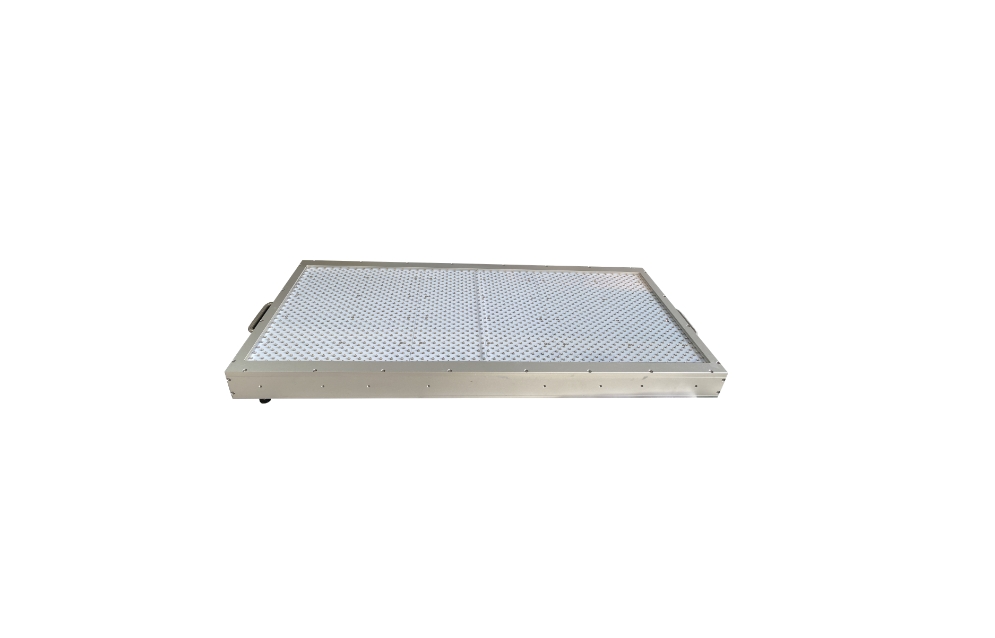

II. Light source characteristics

1. High efficiency and energy saving

The output band of UVLED is concentrated, the photoelectric conversion rate is high, energy saving and power saving, fast curing speed and high productivity.

2. Wide range of application

UVLED is a cold light source, low infrared heat radiation, will not cause work thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

3. Long life

UVLED has a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

4. Green

RoHS compliant, no mercury.
