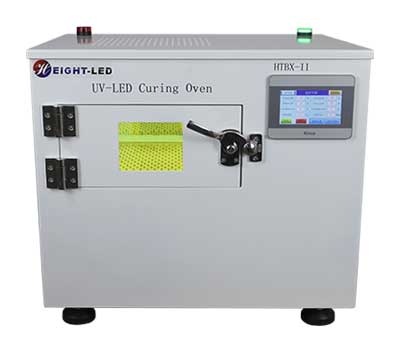

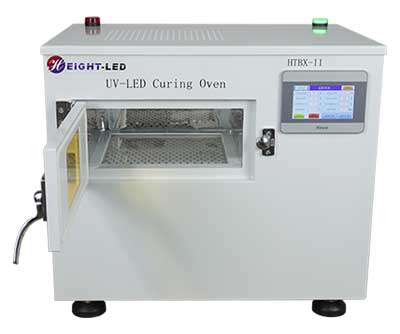

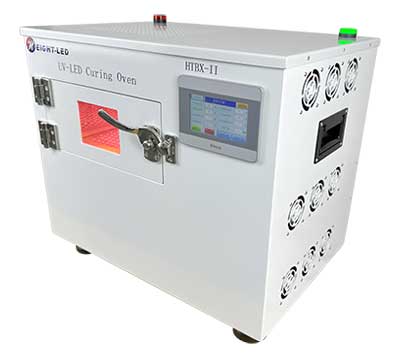

First, nitrogen-filled UVLED curing oven equipment features

　　1、Equipment with nitrogen mode and non-nitrogen mode curing function, non-nitrogen mode: optional automatic or manual mode, automatic mode, by the door sensor control UVLED switch; manual mode, by the touch screen control UVLED switch.

　　2、Nitrogen mode: click the start button to start filling nitrogen after closing the door, when the filling time and the air pressure in the inner cavity reach the set value, UVLED will start irradiating and timing, after the irradiation time is up, it will automatically turn off the UVLED and open the exhaust valve, and the safety door can be opened only after the exhaust is finished.

　　3. the equipment supports nitrogen filling interface, nitrogen filling time and pressure adjustable, real-time detection of air pressure in the cavity and overpressure protection.

　　4、Equipment support 810nm microwave heating function, real-time monitoring and adjustment of the temperature of the cavity, to achieve constant temperature control of the cavity.

　　5. equipment with digital dimming, production counting, historical data query function.

　　Second, nitrogen-filled UVLED curing oven light source features

　　1. high efficiency and energy saving

　　UVLED output band concentration, high photoelectric conversion rate, energy saving, fast curing speed, high productivity.

　　2. wide range of applications

　　UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

　　3、Long life

　　UVLED long life, reduce the investment cost of equipment. That is on and off, without preheating, the number of switches does not affect the service life.

　　4、Green

　　Comply with RoHS, does not contain mercury.
